Article Content

Overview

The data definitions labeled as Focus Eligible are definitions that can be selected when creating a new data visualization and are used to broadly specify which object type’s data will be displayed in the data visualization.

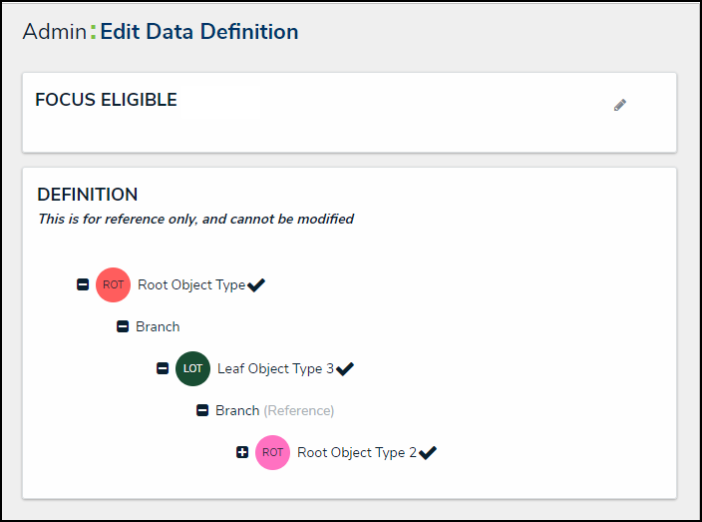

Focus Eligible Definition

A data definition cannot be focus eligible if more than one unique object types on the same level have been selected.

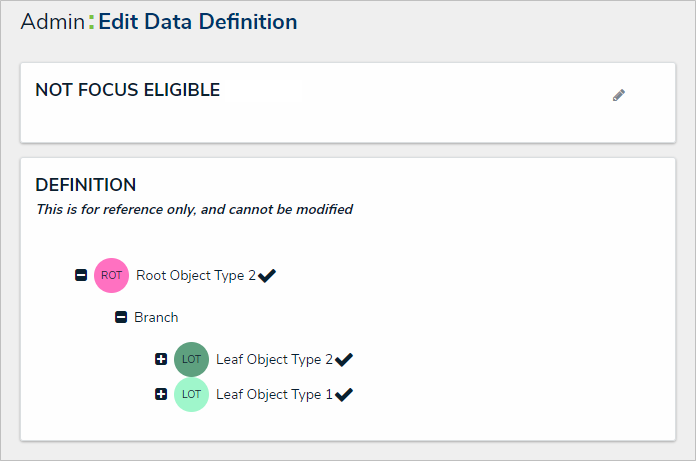

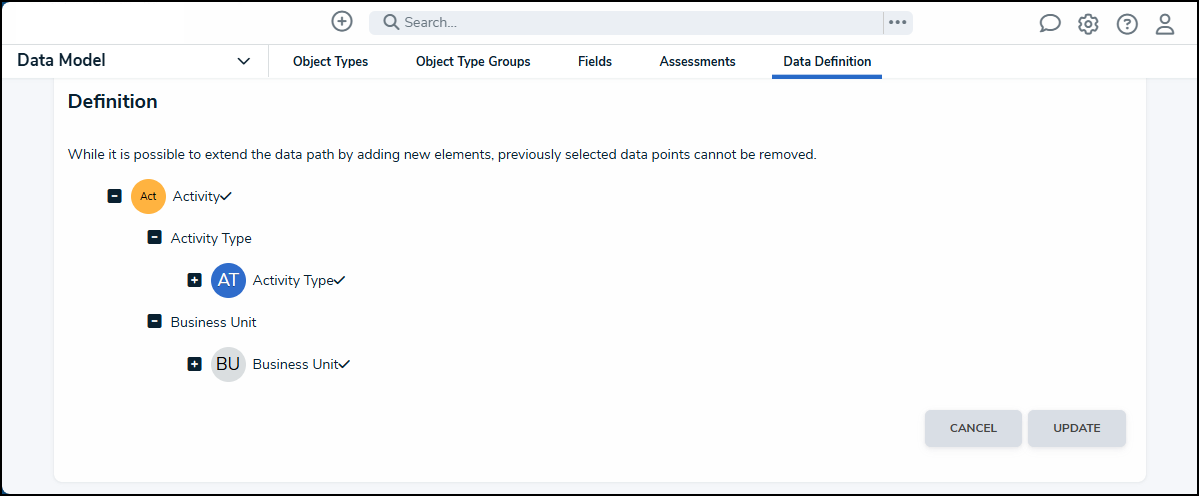

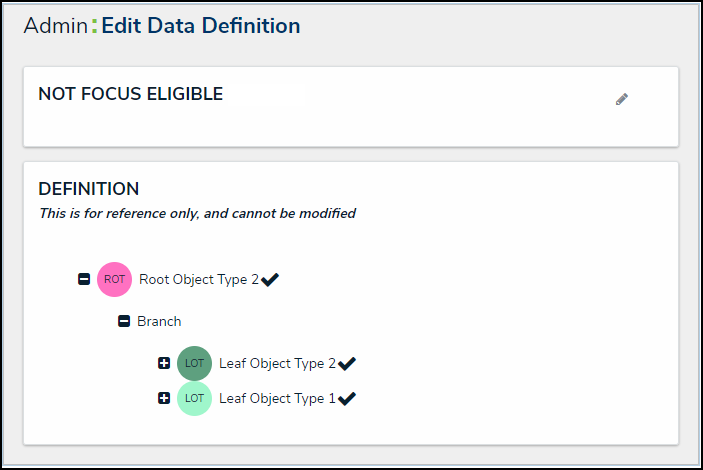

Not Focus Eligible Data Definition

More specifically, when creating a focus eligible definition, you can only select one unique leaf (object type) per each branch in the data path tree.

A definition can be focus eligible with multiple selections on a leaf only if those selections are for the same object type.

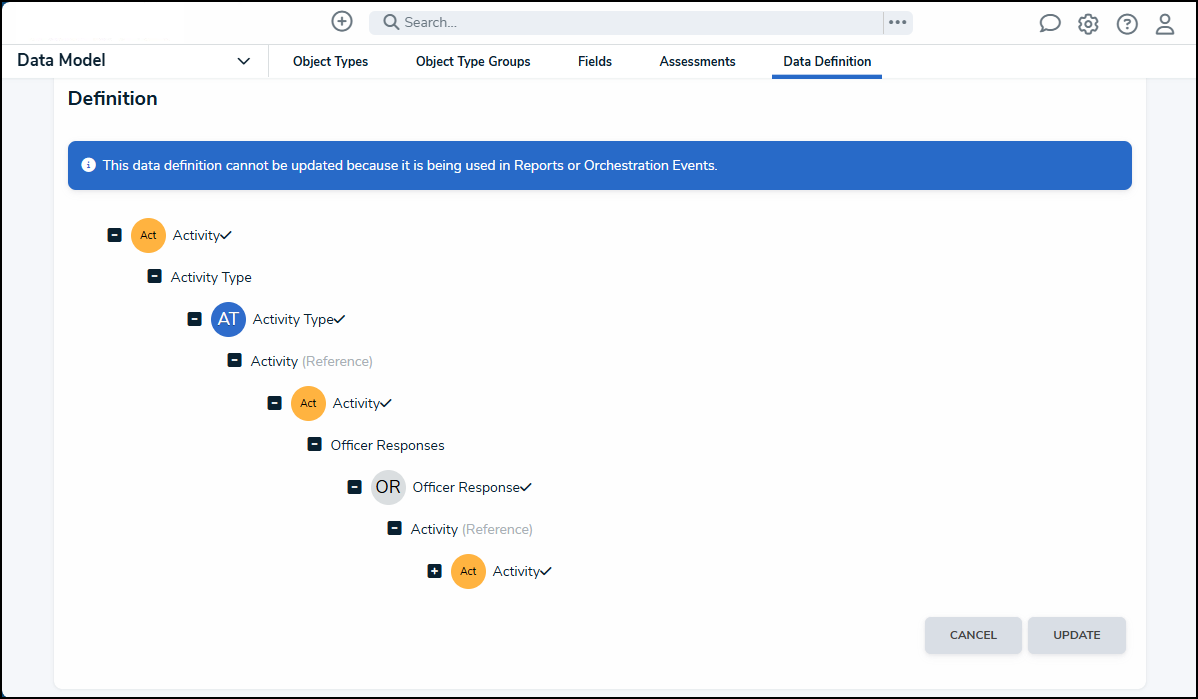

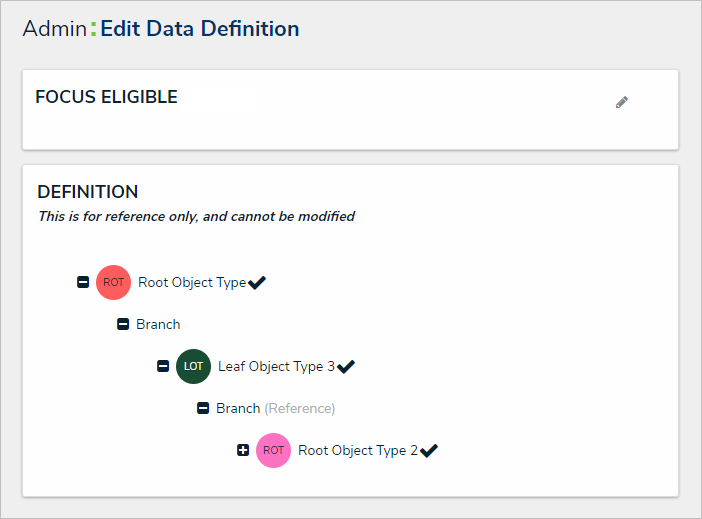

A Focus Eligible Data Definition

Note: A data definition will not be focus eligible if more than one unique leaf has been selected per a single branch in the data path tree.

To view only focus eligible definitions, click the By Leaf tab.
