Overview

Administrators can add a location property field to a form to allow users to enter a location displaying it as an address, map, or address and map.

User Account Requirements

The user must have Administrator permissions in order to access the Admin Overview screen.

Related Information/Setup

Please refer to the Add Location Data to an Object article for information on viewing and selecting a location on an object.

Navigation

1. From the Home screen, click the Administration icon.

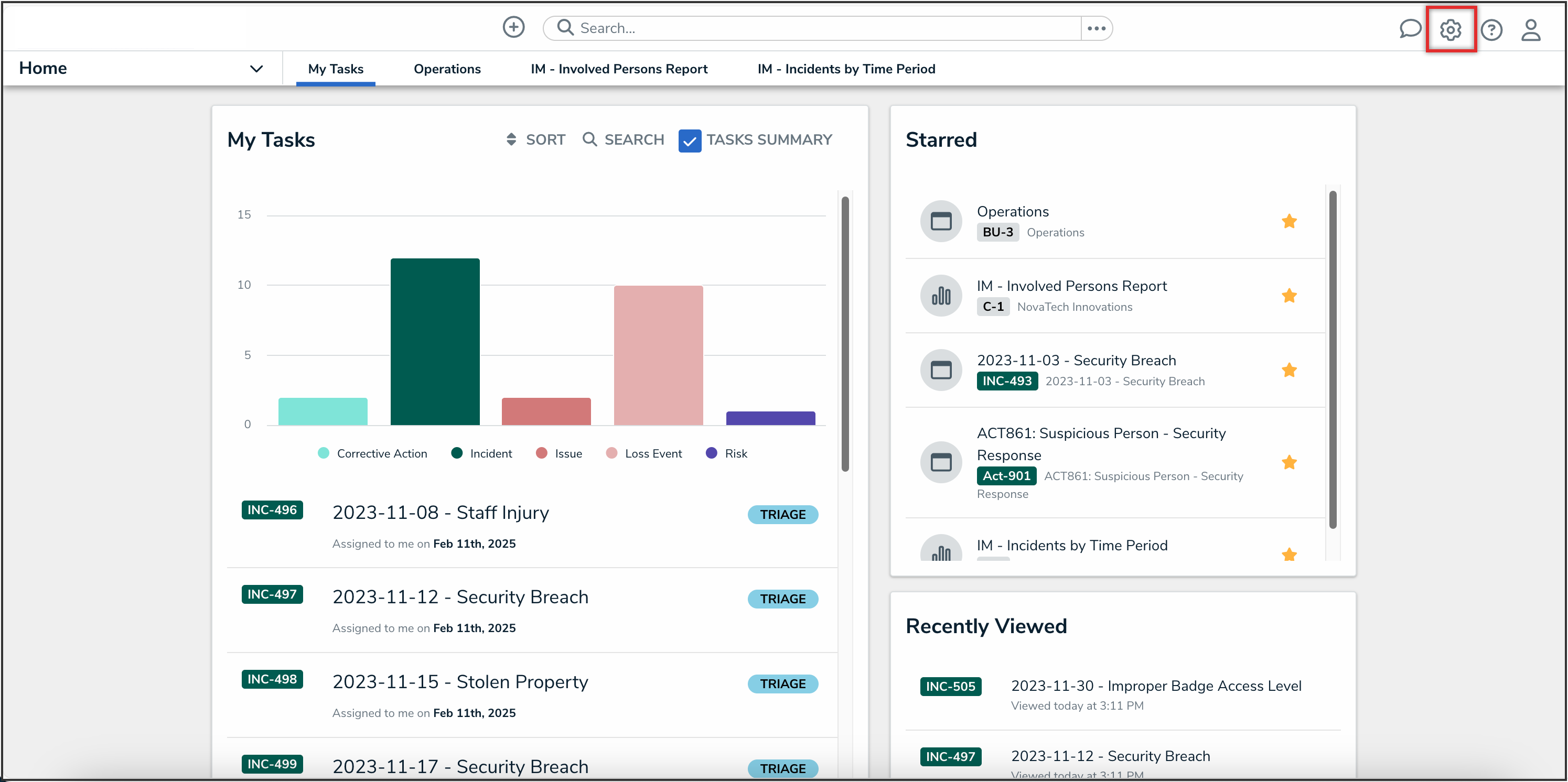

Administration Icon

2. From the Administrator Settings menu, click the Admin Overview link.

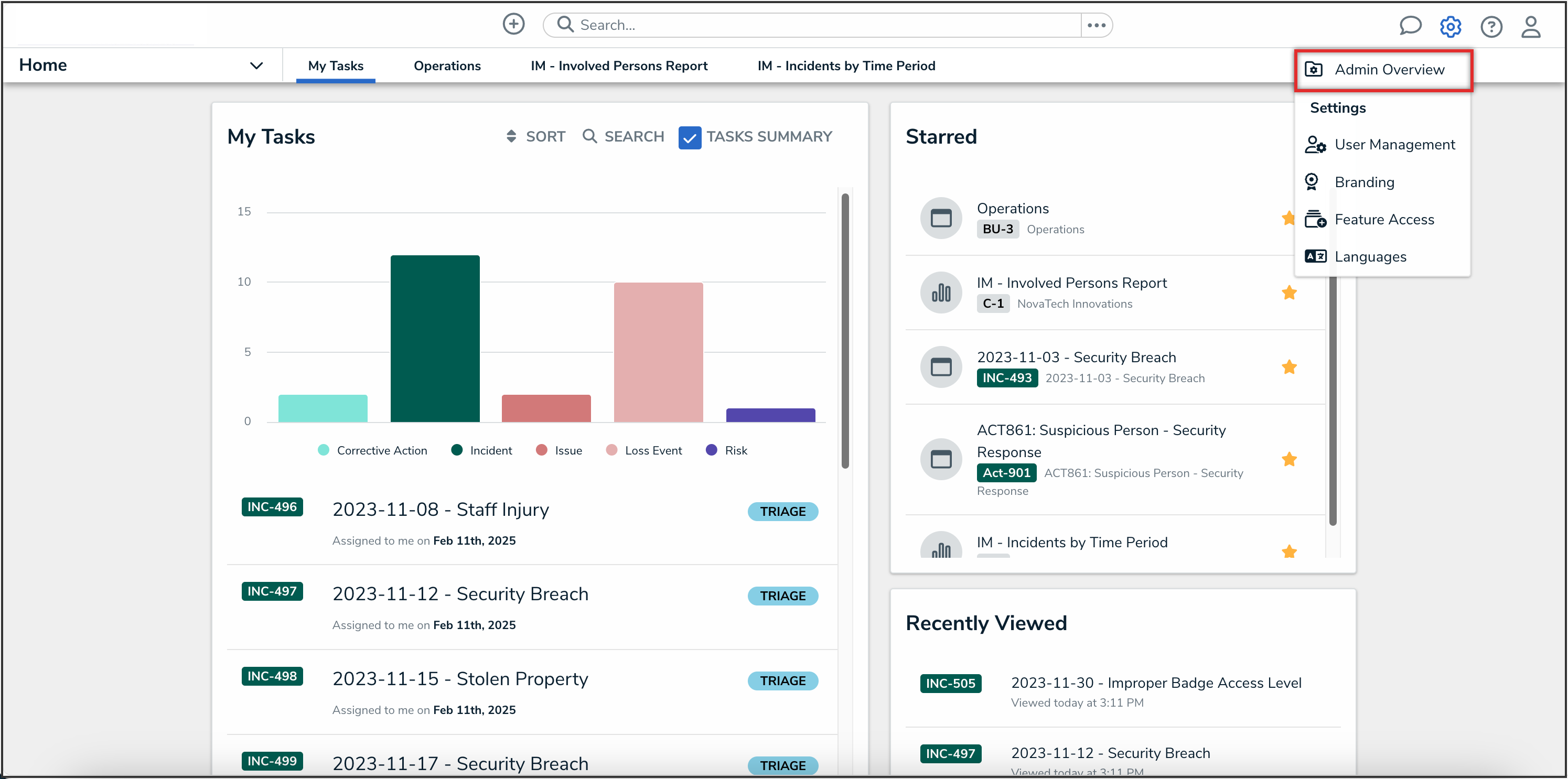

Administrator Settings Menu

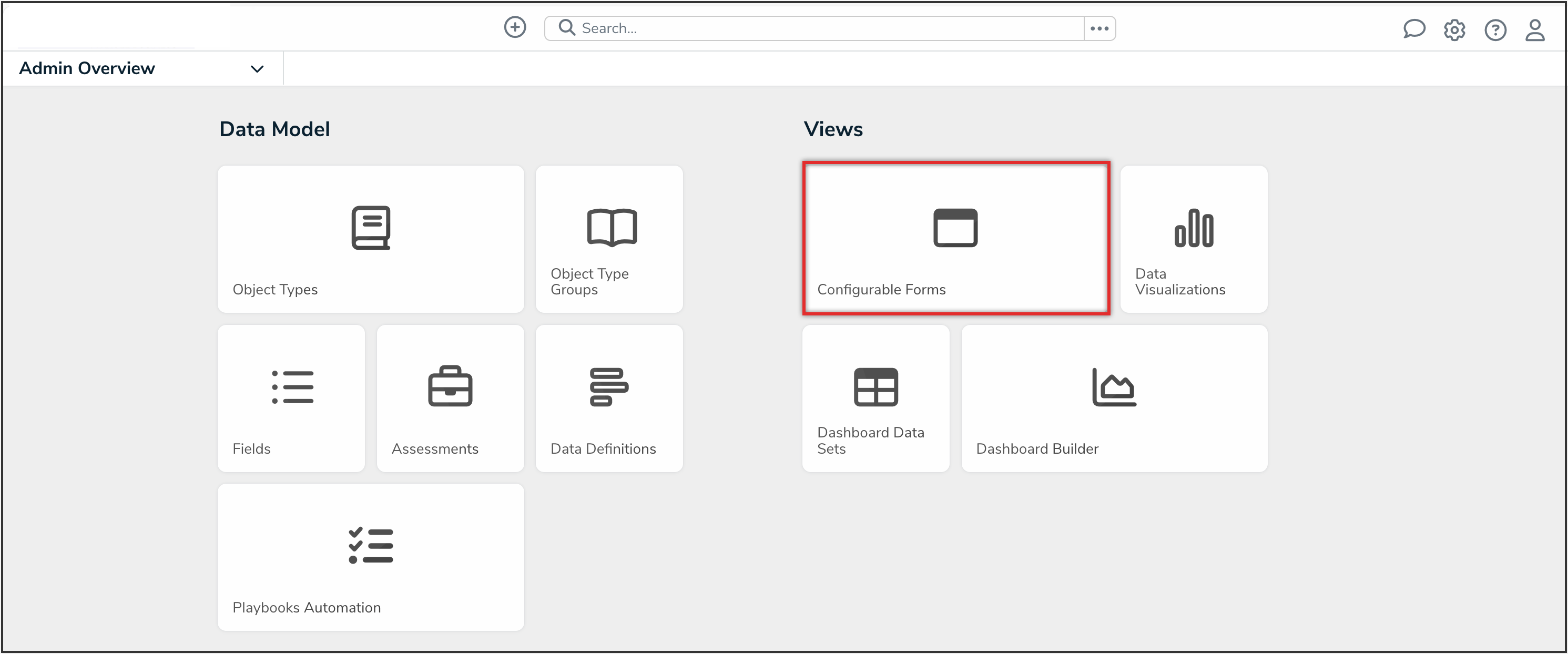

3. From the Admin Overview screen, click the Configurable Forms tile under the Views section.

Configurable Forms Tile

4. From the Admin: Configurable Forms screen, enter a form name in the Search field to narrow the search results.

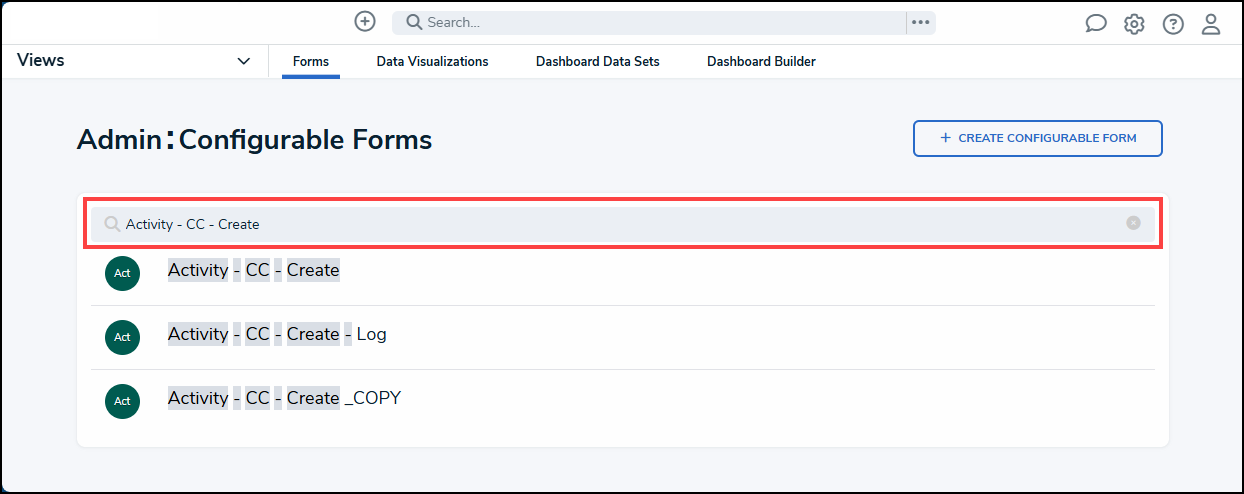

Search Field

5. Click a Form Name.

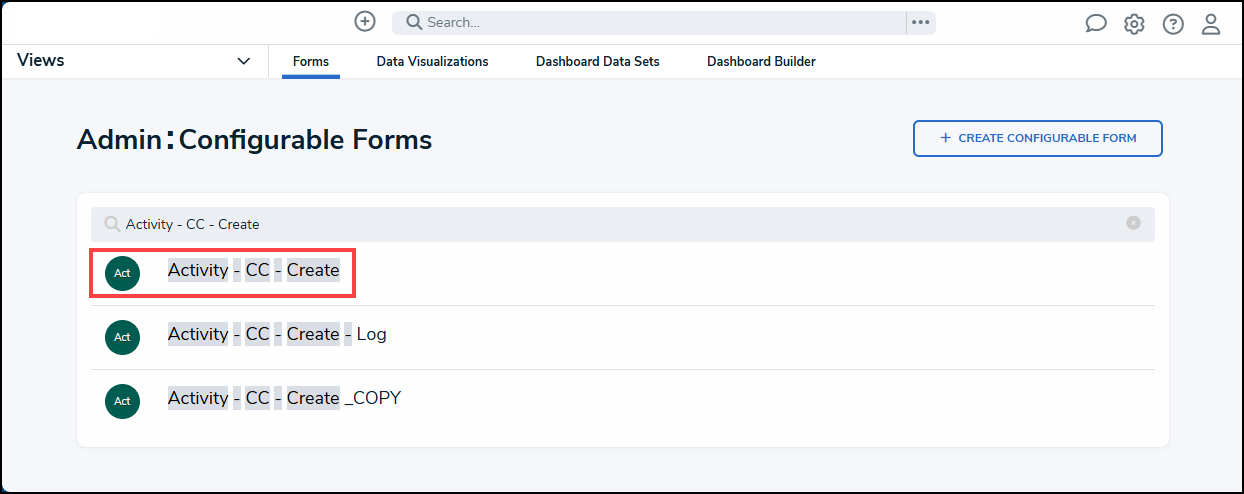

Form Name

Adding the Location Property to a Form

1. From the Admin: Edit Configurable Forms screen, click the Properties link under the Form Elements section to expand the list of options.

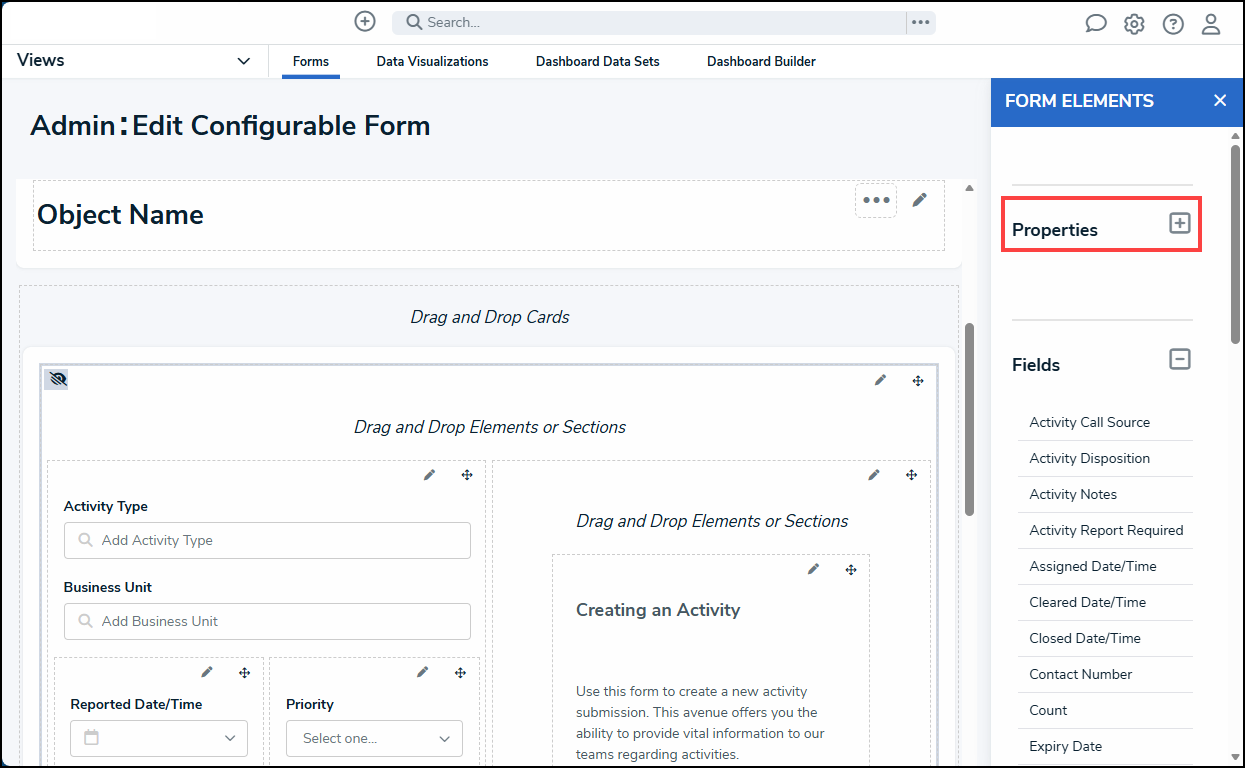

Properties Link

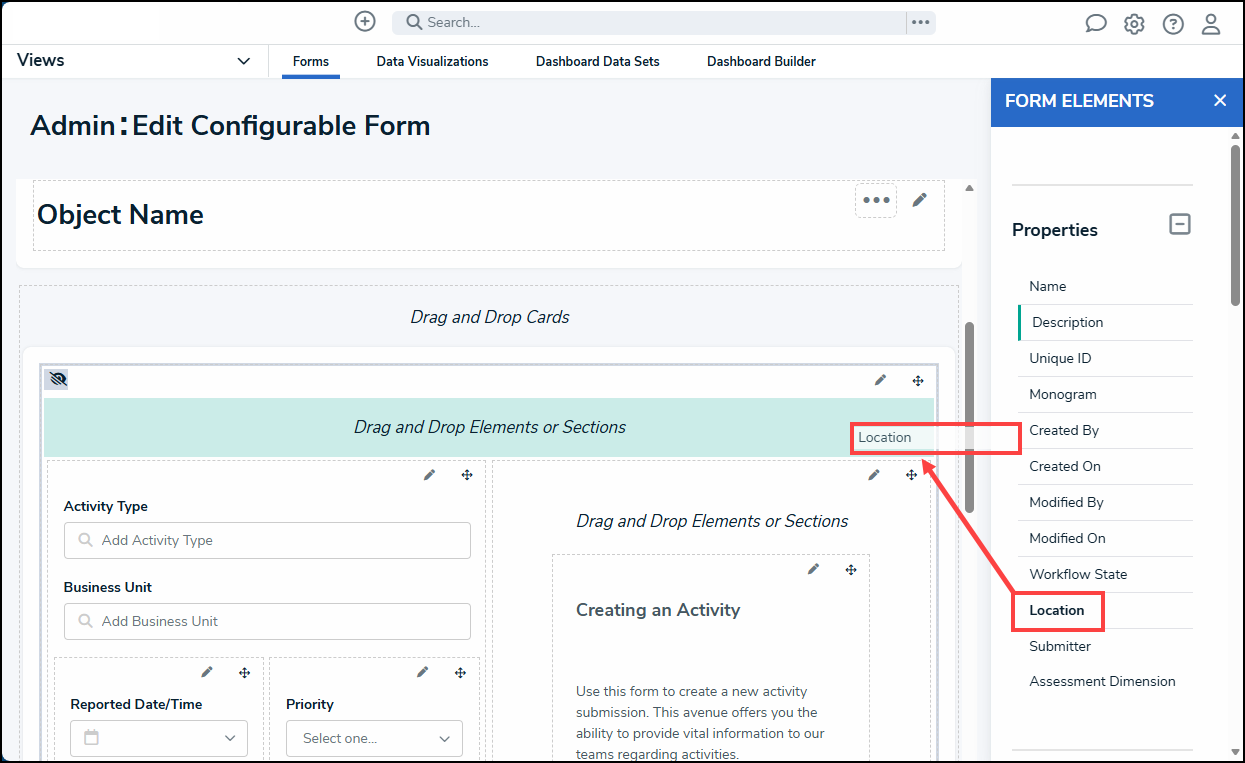

2. Drag and drop the Location property onto the form canvas. The Location property appears on the canvas as Location and is configured to display the address field only, by default.

Location Property

3. Hover the cursor over the Location property on the form canvas and click the Edit icon.

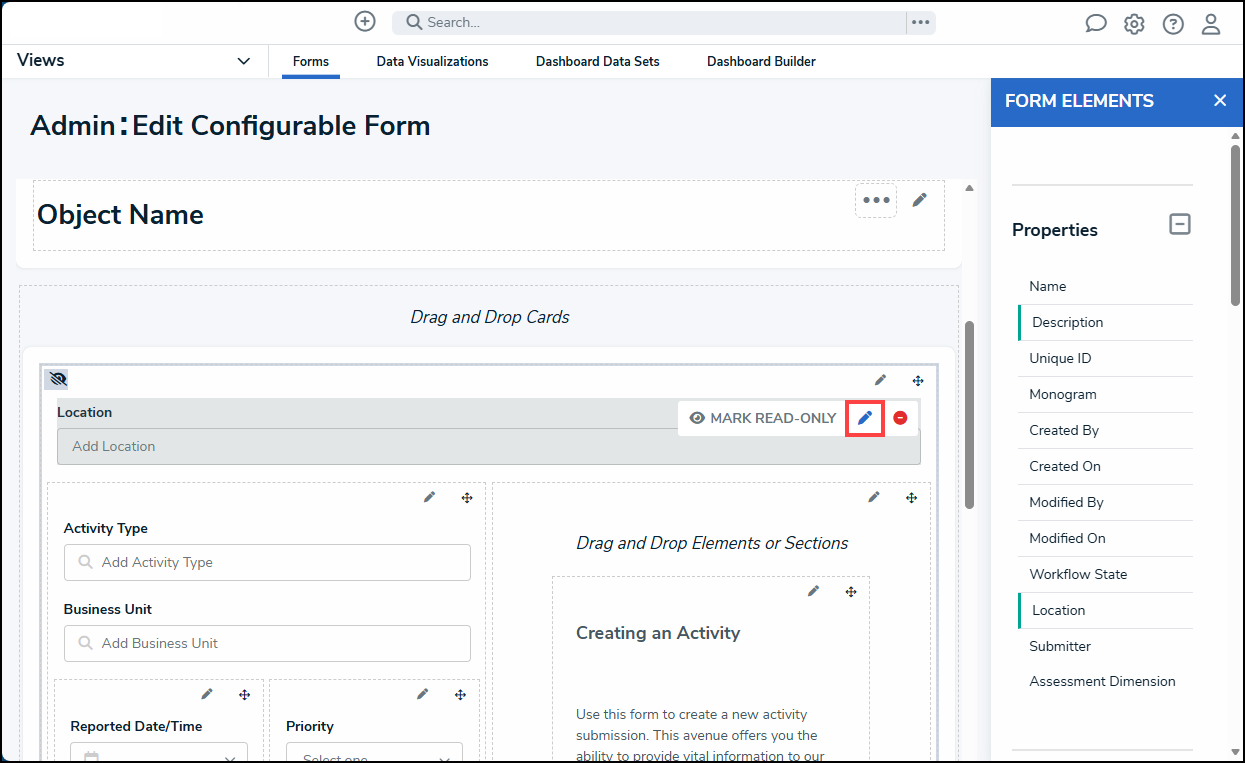

Edit Icon

4. From the Edit Component Display pop-up, select a Display As option:
   • Address Only: A Location text field will appear on the form. Users can type and view an address in the Location text field. If location sharing is enabled on their browser, auto-complete suggestions will appear based on their current location as the user is typing.
   • Map Only: A Map field will appear on the form. Users can select and view a location via pins on a map. If a location hasn't been previously assigned to the object and location sharing is enabled on the user's browser, the map will be centered on the user's current location.
   • Address & Map: A Location text field and a Map field will appear on the form. Users can select and view a location through the Location and Map fields. Selecting a location in the Location field will automatically place a pin on the Map.

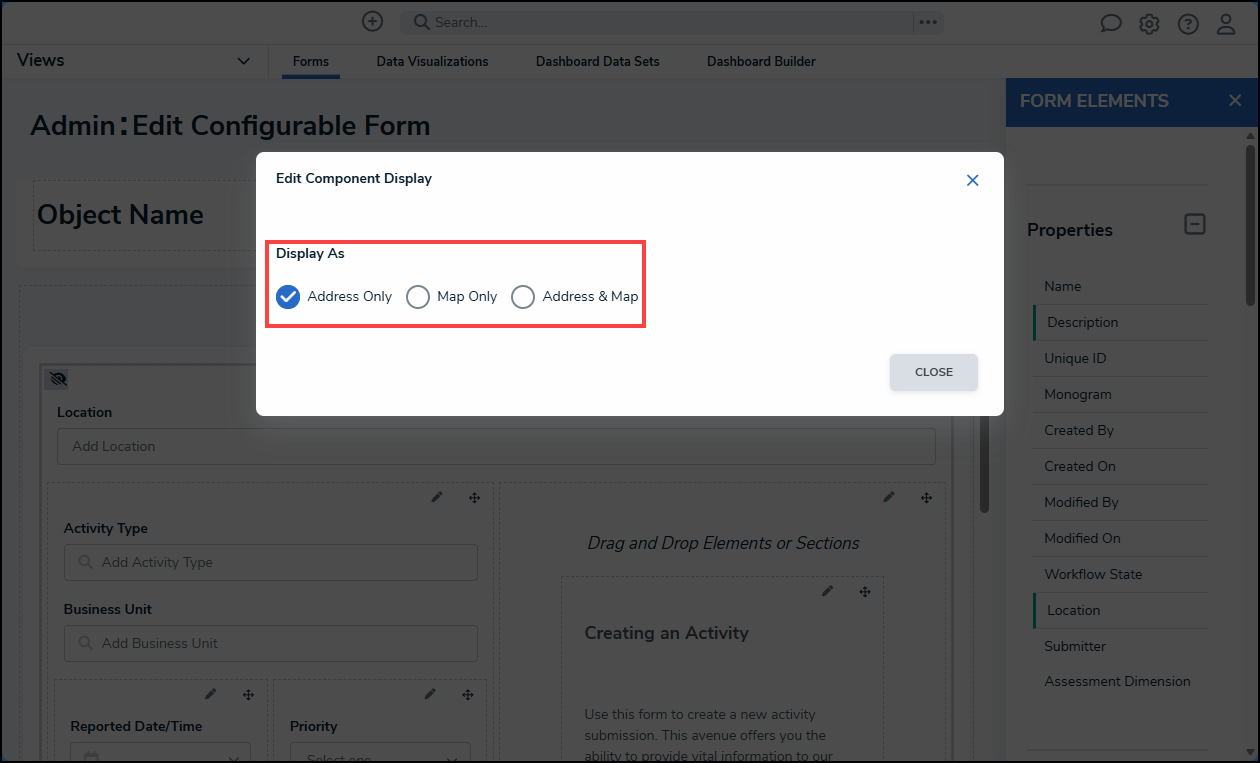

Display As Option

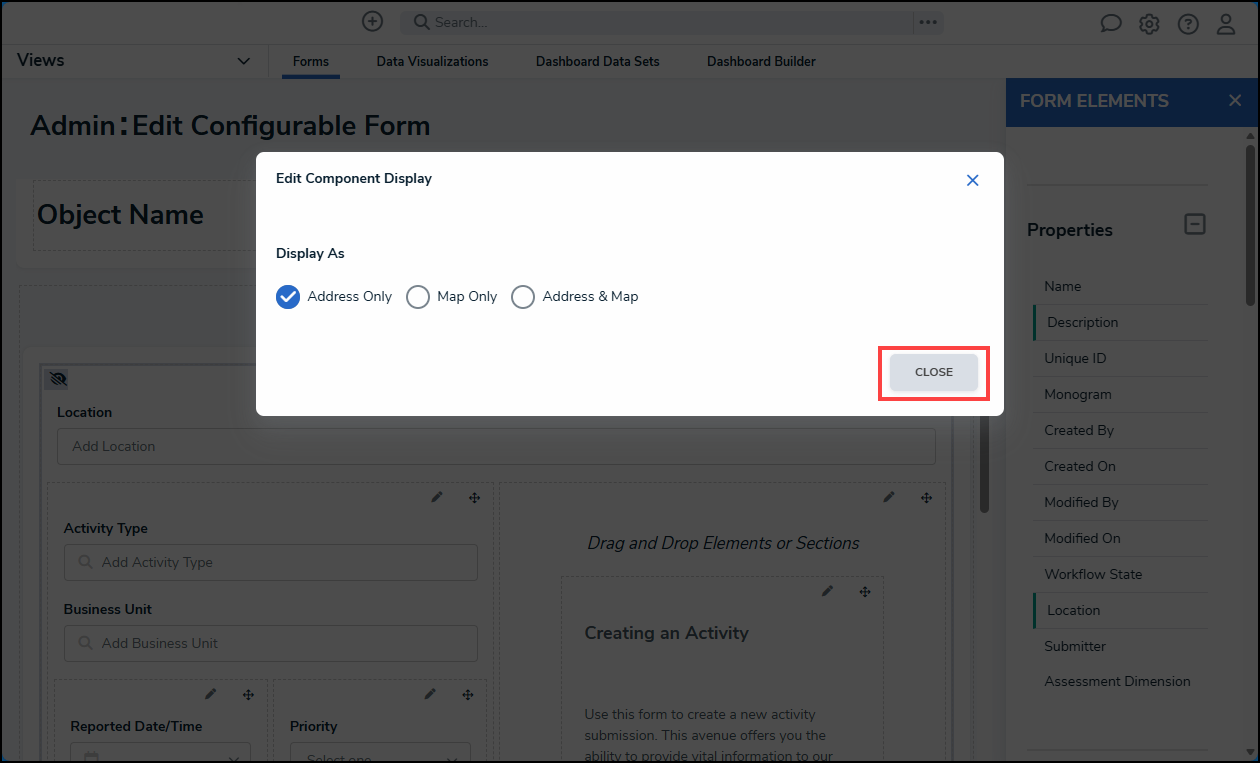

5. Click the Close button to return to the form canvas.

Close Button

6. (Optional) Hover the cursor over the Location field on the form canvas and select the Mark Read-Only link to mark the Location field as read only. When the Location property is read-only, addresses are displayed but are greyed out, and the Map cannot be dragged or zoomed in or out, nor can its pins be moved or deleted.

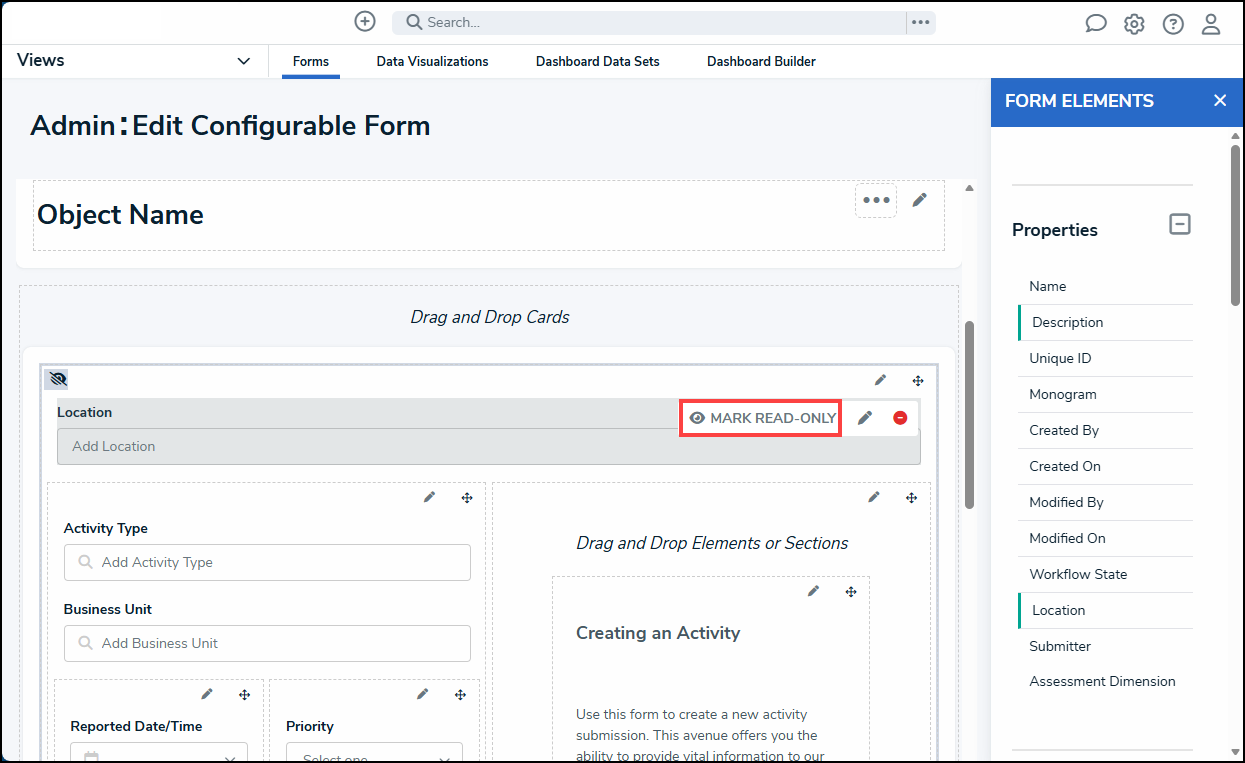

Mark Read-Only Link
